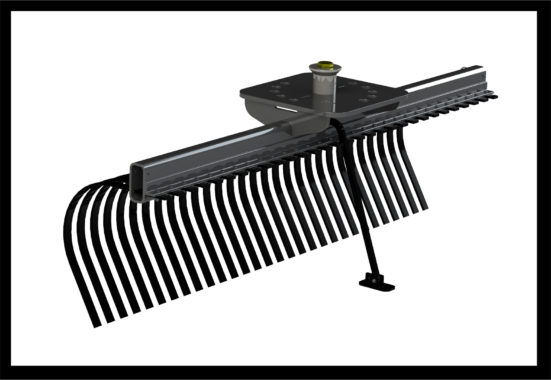

Model SLR-600 Shown



  • Details
  • New
  • Features & Specs
  • Files
  • Gallery

Simplement’s Landscape Rake is a great tool for the clearing of dirt, rocks, fallen branches and general debris on your land or jobsite. When front mounting your Simplement rake to our Model SSM receiver, this not only adds the benefit of extended reach, it allows you to use your loaders float function (if equipped) and tilt cylinders. This allows you to lift and curl for a gentler approach in delicate clean up on the smaller or environmentally sensitive jobs. You also can apply downforce on the rake for those tough clean ups or landscaping jobs where you really need to get things moving or clean.

When rear mounting your rake, Model 321 will accommodate a rake of up to 60 inches wide and support 360-degree rotation along with 5 forward and 5 rearward angle adjustments at 22 degrees.   A wider rake may be utilized with Model 321 which will still be reversible and angled, but will not rotate 360 degrees. All Simplement rakes come standard with a stand which is storable inside the rake assembly when not in use.

Keep checking back for new accessories and details on this product!

Simplement Landscape Rake Specifications:

Model SLR-480 SLR-540 SLR-600 SLR-720 SLR-840 SLR-960
Part Number 70009 70010 70011 70012 70013 70014
List Price (CAD) $742.00* $760.00* $798.00* $855.00* $903.00* $989.00*
Width 48in. 54in. 60in. 72in. 84in. 96in.
Weight (Approx.) 136 lbs 148 lbs 160 lbs 185 lbs 209 lbs 234 lbs
King Pin Bolt Torque Min. 500 ft-lbs Min. 500 ft-lbs Min. 500 ft-lbs Min. 500 ft-lbs Min. 500 ft-lbs Min. 500 ft-lbs
Horsepower Rating Up to 50HP Up to 50HP Up to 50HP Up to 50HP Up to 50HP Up to 50HP
Number of Tines 24 27 30 36 42 48
Tine Spacing 1 in. 1 in. 1 in. 1 in. 1 in. 1 in.
Tine Dimensions 1” x 5/16” 1” x 5/16” 1” x 5/16” 1” x 5/16” 1” x 5/16” 1” x 5/16”




Pivot Angle Adjustments



Manual, 5 forward and rearward positions





Manual, 5 forward and rearward positions





Manual, 5 forward and rearward positions



Manual, 5 forward and rearward positions



Manual, 5 forward and rearward positions



Manual, 5 forward and rearward positions

360 ° Rotation with Simplement 321 Yes Yes Yes No No No
360 ° Rotation with Simplement SSM Yes Yes Yes Yes Yes Yes
Parking Stand Standard Standard Standard Standard Standard Standard

 *All prices in Canadian dollars. For sales inquiries outside Canada, please contact sales at sales@lionforgeindustries.com for pricing and availability.

NOW AVAILABLE – Click here to download the Simplement Product Catalogue!

Operators Manual – Coming Soon!
