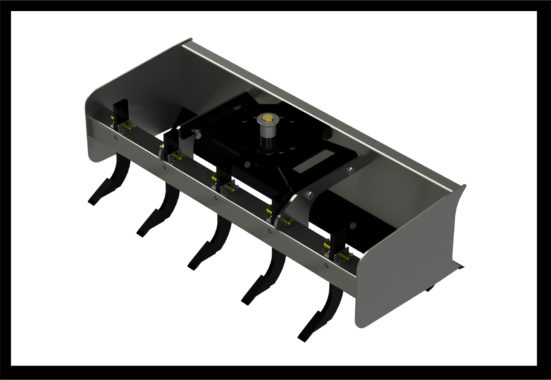

Model SBS-600 shown



  • Details
  • New
  • Features & Specs
  • Files
  • Gallery

Simplement Box Scrapers are designed for maximum flexibility for when you are tackling both the simple and tough landscaping jobs. Whether you are smoothing your driveway, fixing ruts, contouring, or moving materials, our Box Scraper can make your life easier, even when pushing snow.

Unlike any other box scraper, when matched with our Simplement Model 321 receiver can offer 360 degrees rotation on models up to 60 inches wide. This allows a maximum 60in. wide box scraper to be completely reversed allowing the use of the “rear” cutting edge to now be used as a scraper blade. It also has adjustable angles of five forward and five rearward positions of 22 degrees. Simplement box scrapers wider than 60 inches may not be able to rotate 360 degrees in Model 321, but they can still be angled, disconnected, and reconnected to reverse direction.

This innovation allows the Simplement system to further increase the versatility of one of the most commonly used implements in the industry

Keep checking back for new accessories and  updates on this product!

Simplement Box Scraper Specifications:

Model SBS-540 SBS-600 SBS-720 SBS-840
Part Number 70022 70023 70025 70026
List Price (CAD) $1,650.00* $1,700.00* $1,860.00* $1,940.00*
Approx. Width 54in. 60in. 72in. 84in.
Approx. Weight 382lbs 425lbs 486lbs 545lbs
King Pin Bolt Torque Min. 500 ft-lbs Min. 500 ft-lbs Min. 500 ft-lbs Min. 500 ft-lbs
Max. Working Depth 4in. 4in. 4in. 4in.
No. of Shanks 4 (Reversible) 5 (Reversible) 6 (Reversible) 7 (Reversible)
Reversible Cutting Edges
(½ in x 6in High Carbon Steel)
Yes Yes Yes Yes
360 ° Rotation with Simplement Model 321 Yes Yes No No
360 ° Rotation with Simplement Model SSM Yes Yes Yes Yes
Box Reversible Yes Yes Yes Yes
Pivot Angle Adjustment Manual, 5 forward and rearward positions Manual, 5 forward and rearward positions Manual, 5 forward and rearward positions Manual, 5 forward and rearward positions
Adjustment Tilt 3pt Hitch Linkage 3pt Hitch Linkage 3pt Hitch Linkage 3pt Hitch Linkage
Tractor Engine Require. Up to 50HP Up to 50HP Up to 50HP Up to 50HP
Capacity (approx.) 10 cu. ft. 11.5 cu. ft. 14 cu. ft. 16 cu. ft.

*All prices in Canadian dollars. For sales inquiries outside Canada, please contact sales at sales@lionforgeindustries.com for pricing and availability.

NOW AVAILABLE – Click here to download the Simplement Product Catalogue!

Operators Manual – Coming Soon!
